Monti Antonio Roll to Roll Calenders

Sublimate

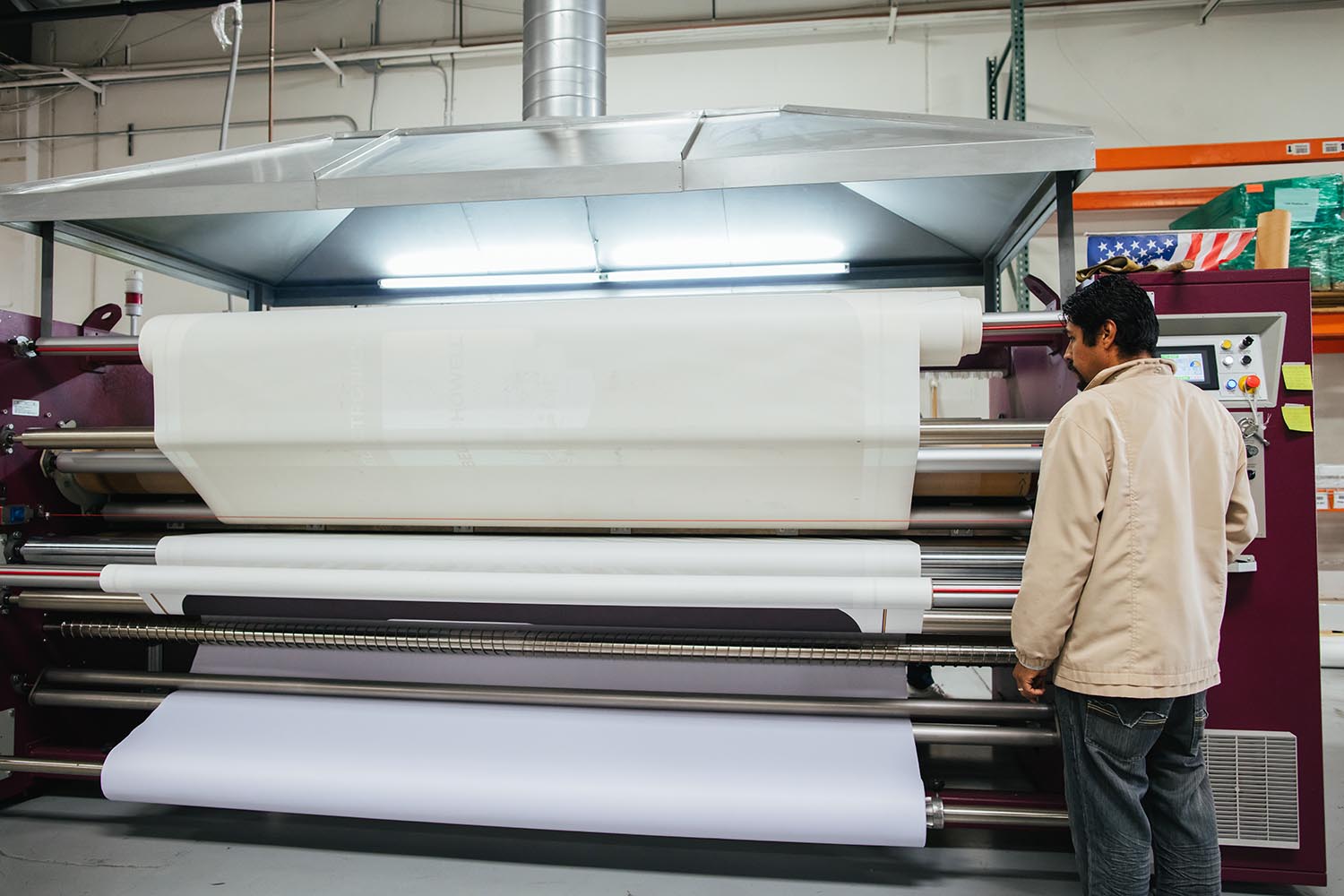

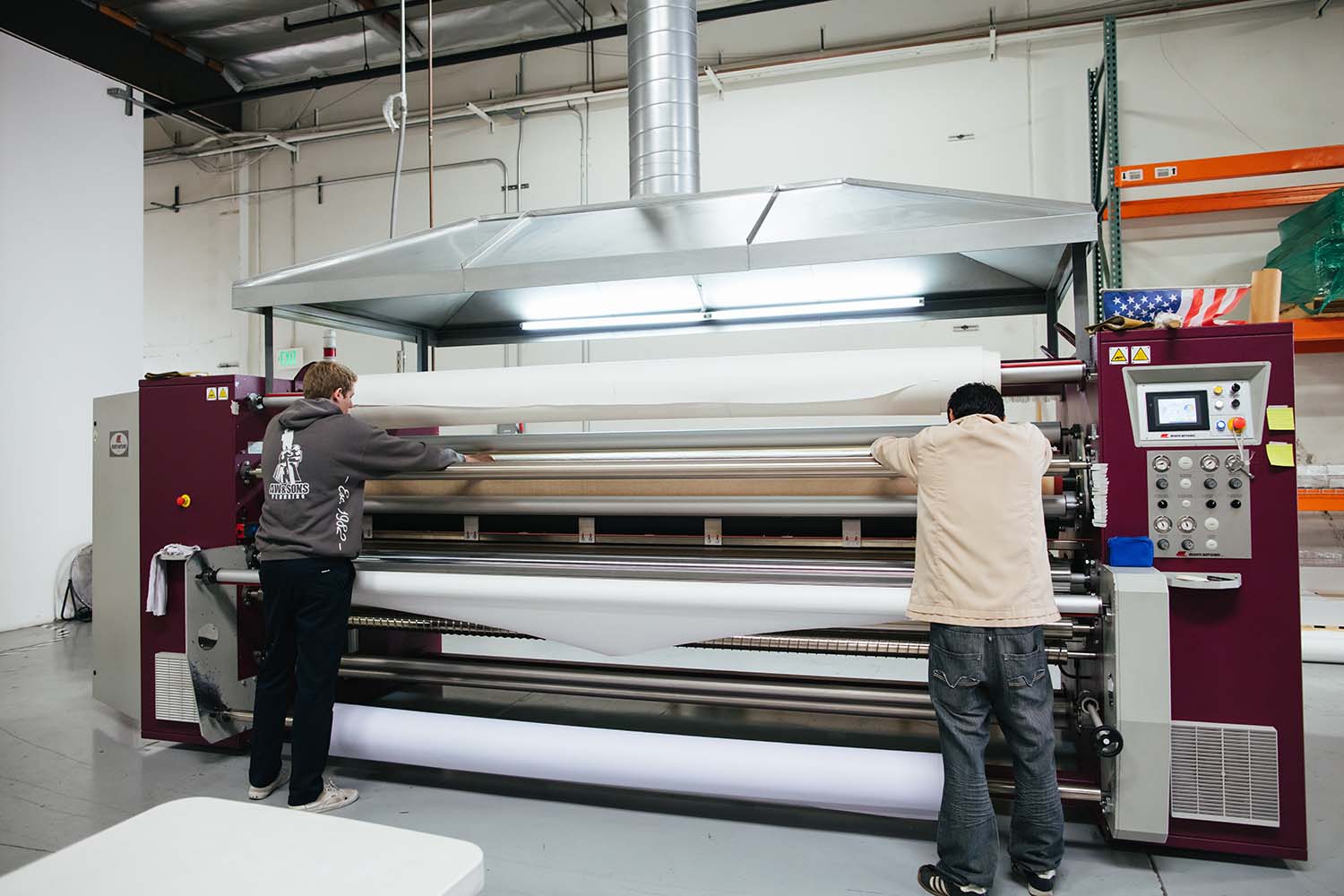

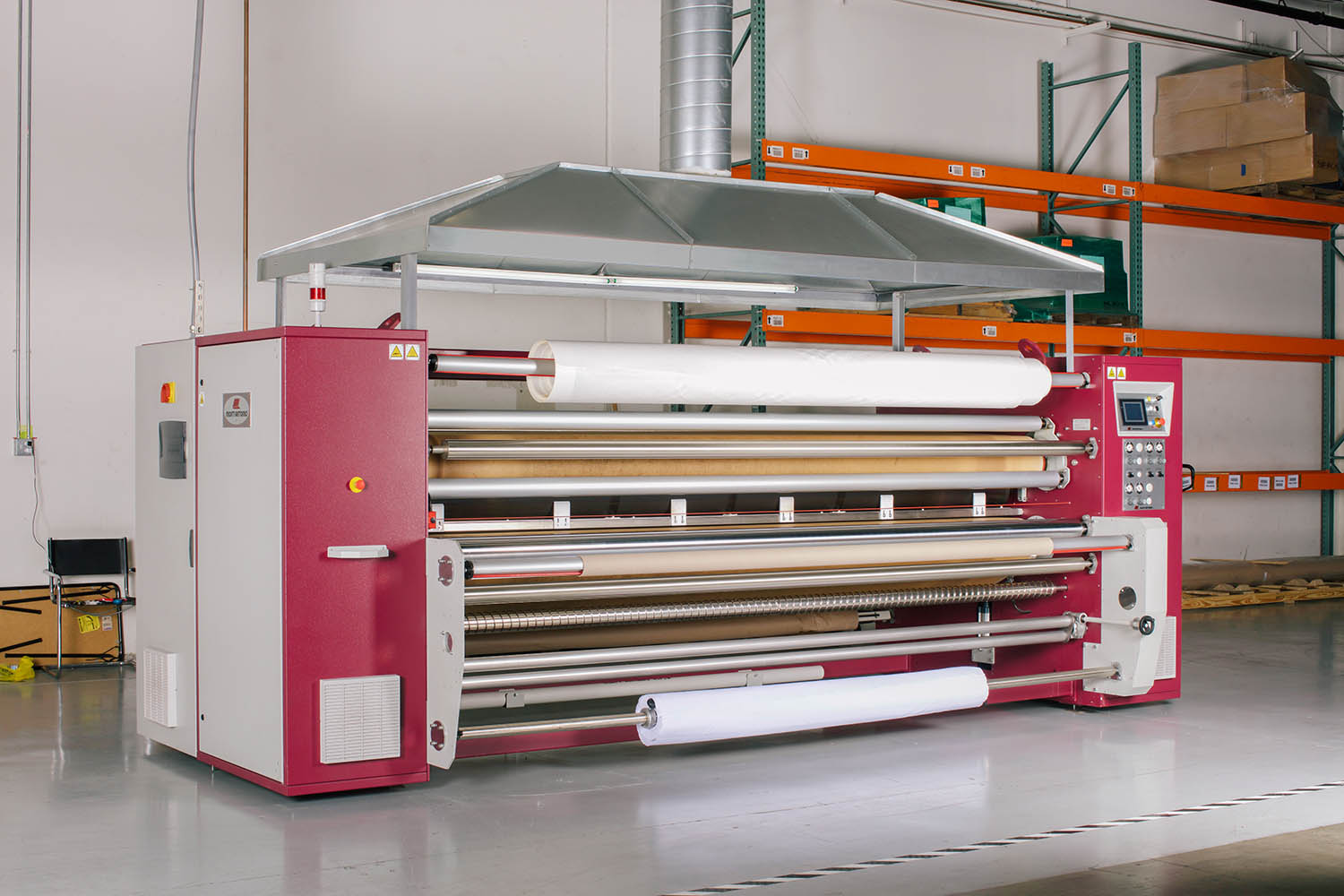

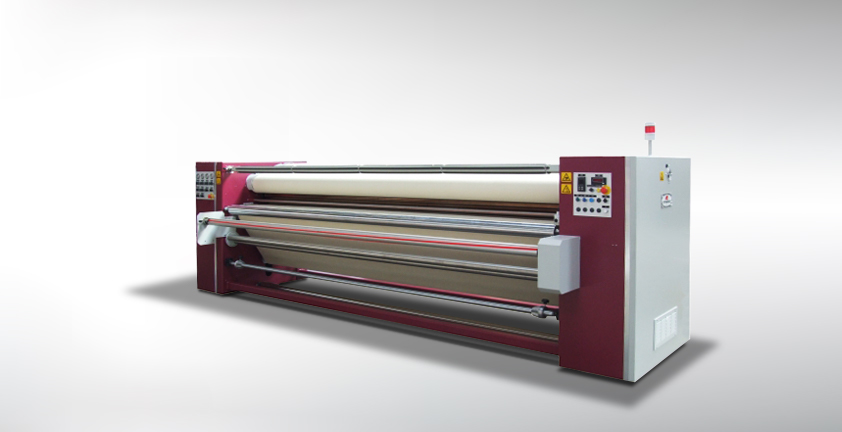

Monti Antonio roll to roll calenders, also known as rotary heat presses, are the perfect compliment to your digital textile printer. They can process rolls of printed fabric for decor, soft signage and display graphics. Even limited runs of promotional materials, narrow strip fabrics and ribbon can be fed through these machines.

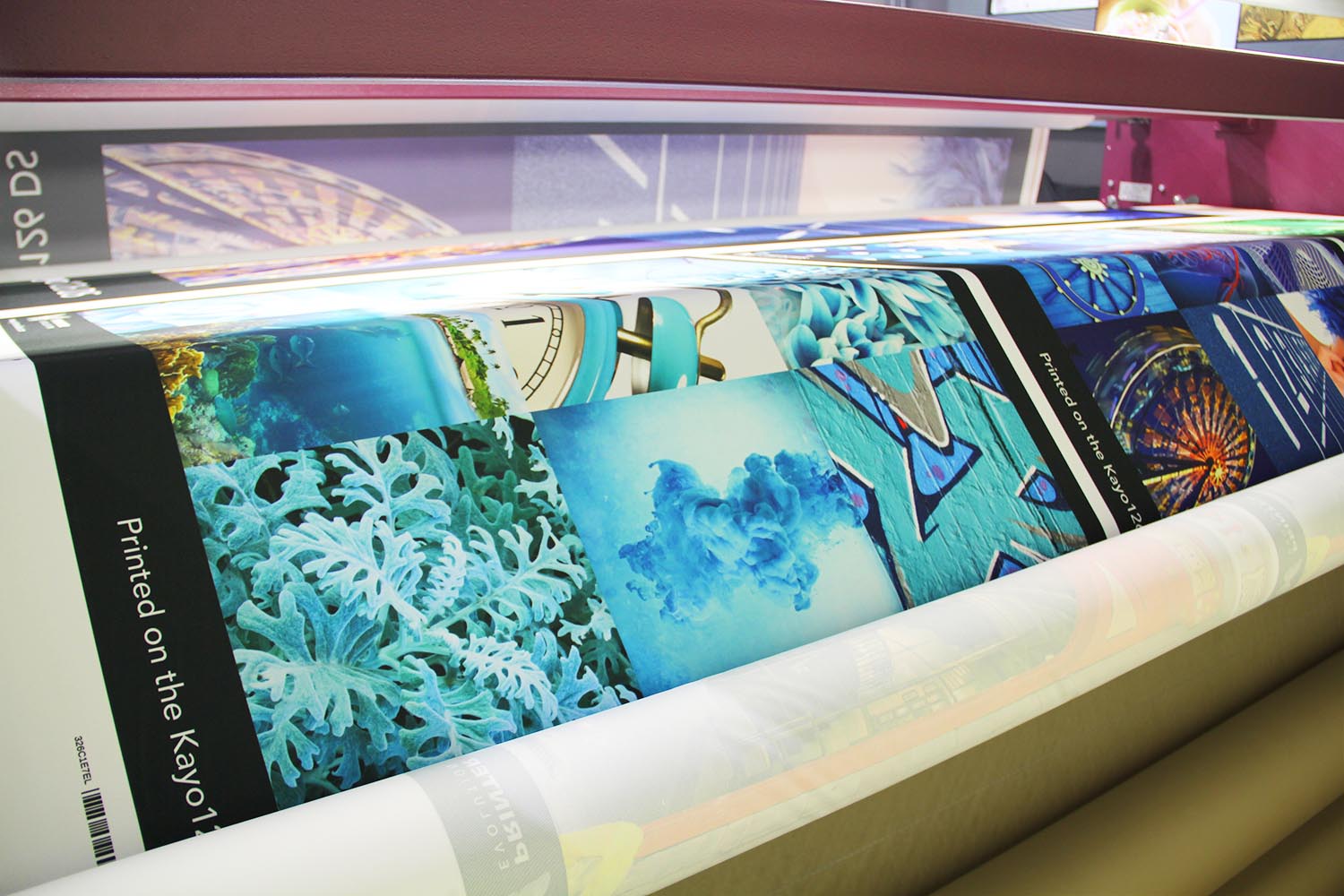

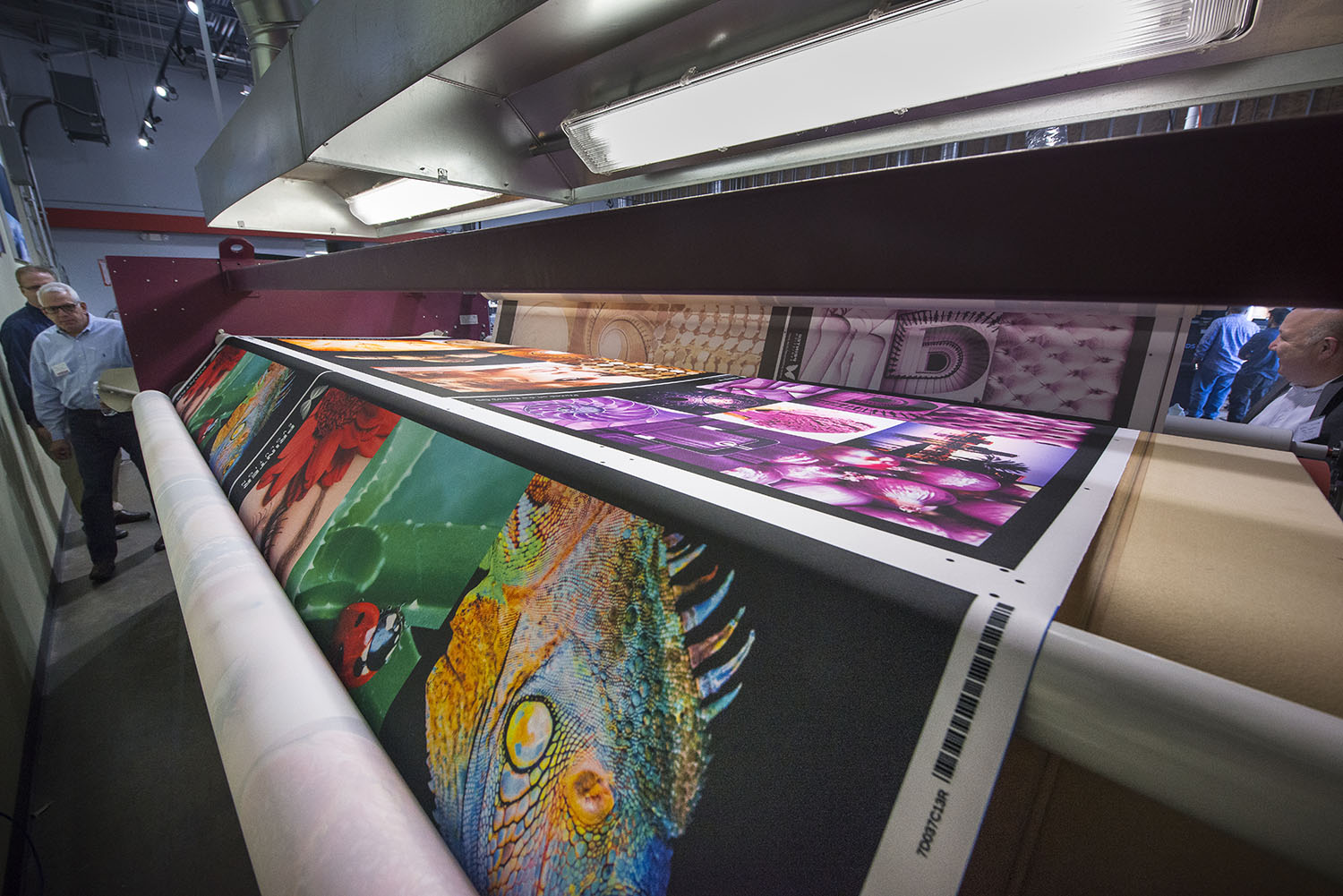

Monti Antonio calenders are the ideal machines for sublimating both transfer- and direct-printed dye sub graphics. A Monti will boost productivity in any shop with digital controls, programmable settings, flexibility and efficiency.

  • These are precise roll-to-roll dye sublimation calenders using an oil-heated drum for even heat. The computerized interface provides automation for startup time, profiles and precise pressure and timing.

    HIGHLIGHTS:

    • All movements are controlled with independent, synchronized motors, avoiding the chain or pulley systems used by competitors that create unpredictable variables from job to job.
    • A central resistor heating system, patented by Monti Antonio, within the oil-filled drum guarantees perfect uniformity of temperature over the entire surface of the cylinder, maintaining an extremely low electrical consumption.
    • The vacuum-sealed drum cannot leak unlike end-cap systems that eventually wear out.

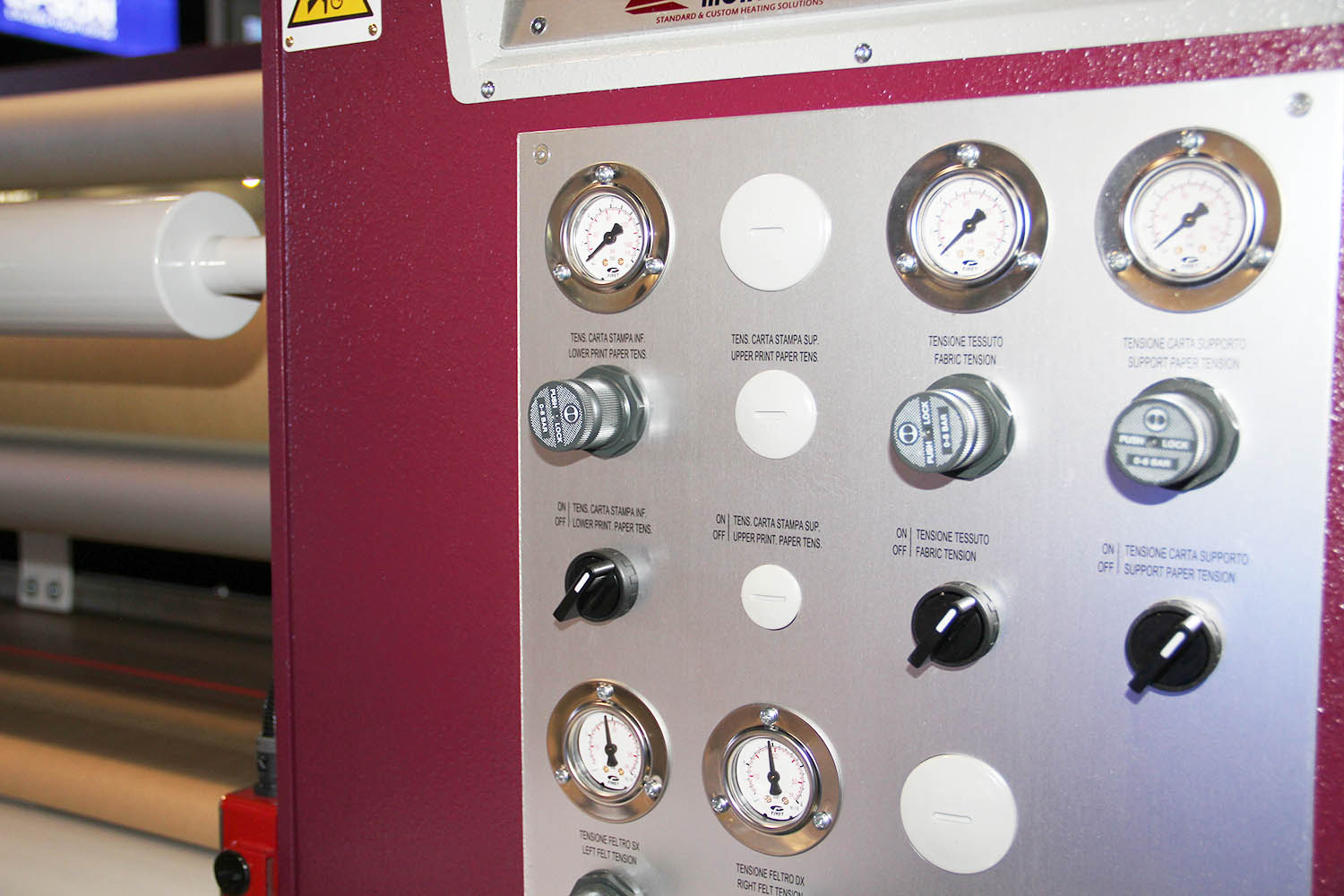

    • Special motors for automatic, constant tension for printing and protection paper at the exit of the machine.
    • Built-in alert system in case of power loss or compressed air loss.
    • PLC program for setting machine start-up and shut-down times as well as settings for specific papers.
    • The NOMEX felt belt guarantees optimum printing results and a long working life.
    • Multifunctional electronic meter-counter, with alarm to predetermine the length of production runs.
    • Temperature cooling system for printed fabric exit, complete with fan.

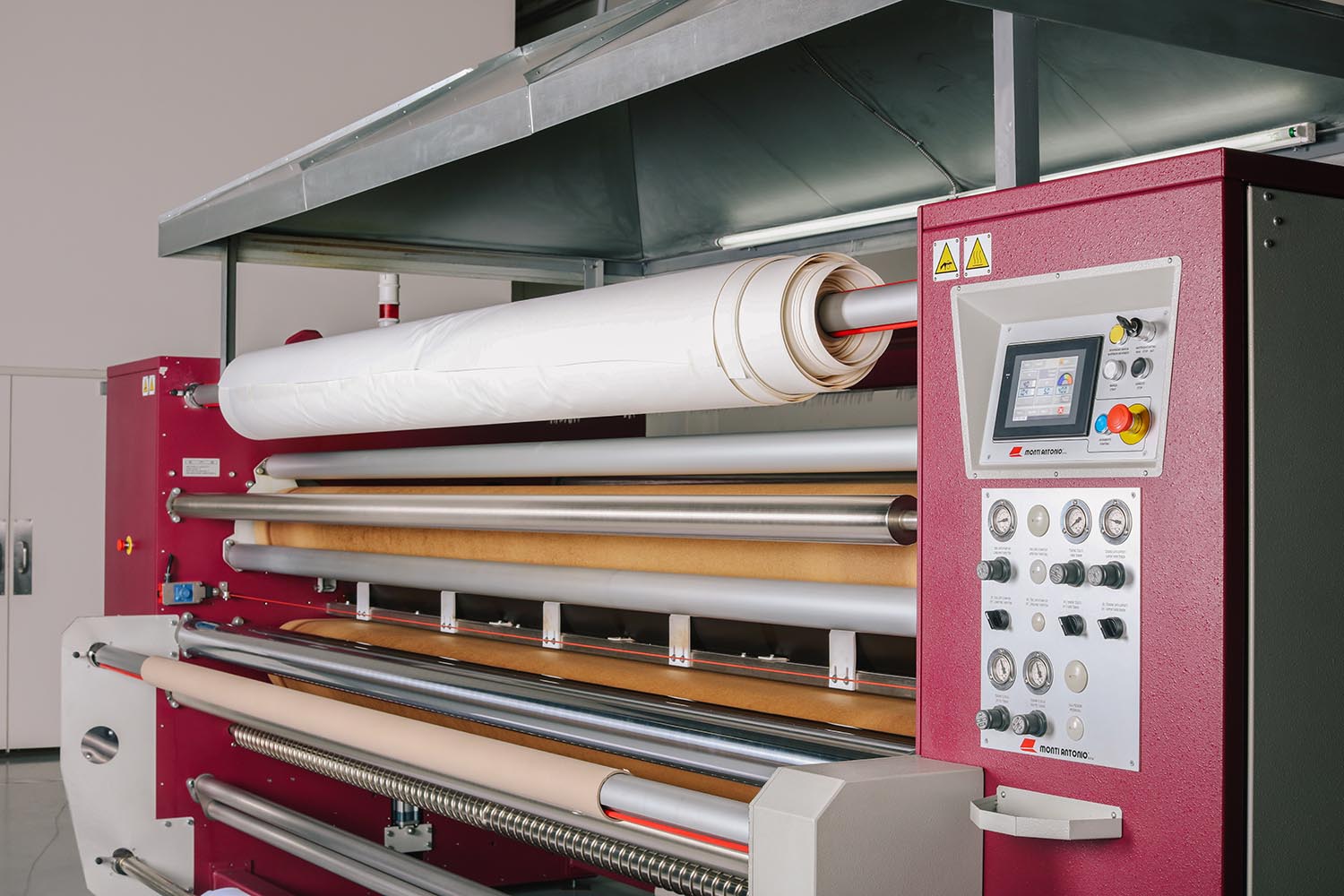

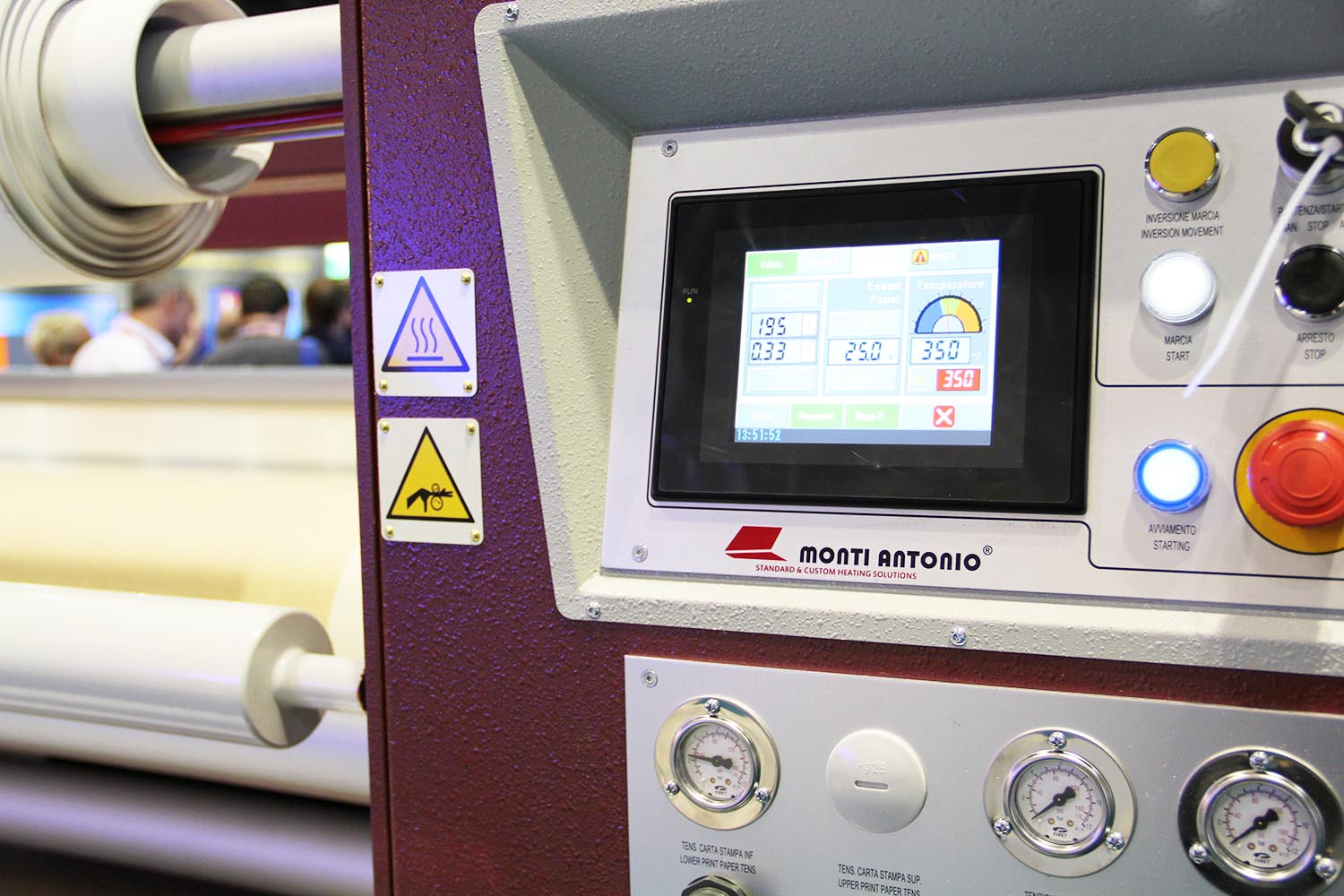

    • Front touch-screen keyboard for production data access and programming.
  • MODEL 75CFE

    • Drum Diameter: 200 mm
    • Drum Width: 2 m

    MODEL 901

    • Drum Diameter: 350 mm
    • Drum Widths: 4 widths available, 2 m to 3.6 m

    MODEL 91

    • Drum Diameter: 500 mm
    • Drum Widths: 6 widths available, 2 m to 5.4 m

    MODEL 902

    • Drum Diameter: 1000 mm
    • Drum Widths: 6 widths available, 2 m to 5.4 m

    *Each model effectively doubles in speed with every increase in drum size.

  • Mod 75CFEMod 901Mod 91Mod 902
    2000 mm (78.84″)2000 mm (78.84″)2000 mm (78.84″)2000 mm (78.84″)
    2600 mm (102.36″)2600 mm (102.36″)2600 mm (102.36″)
    3000 mm (118″)3000 mm (118″)3000 mm (118″)
    3600 mm (141.7″)3600 mm (141.7″)3600 mm (141.7″)
    4400 mm (173.23″)4400 mm (173.23″)
    5400 mm (212.59″)5400 mm (212.59″)
